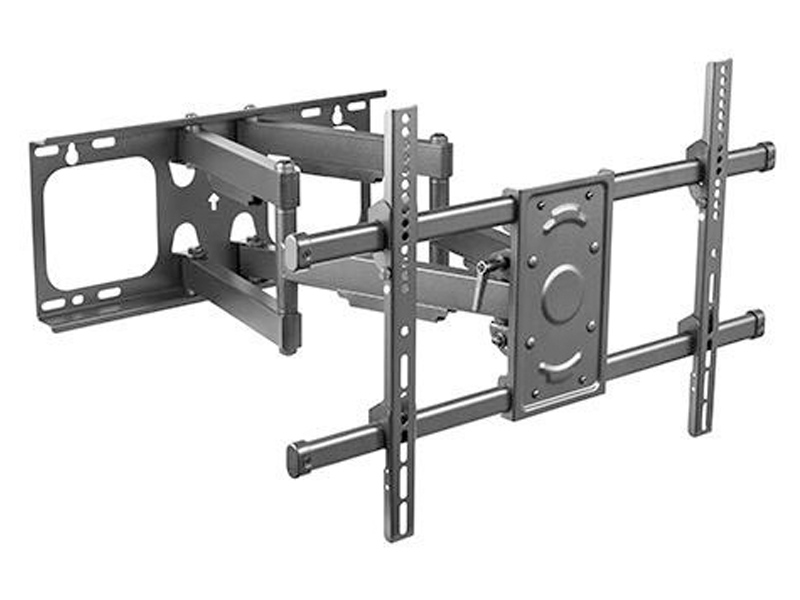

Protech 37″ - 82″ Full Motion/Articulating TV Wall Mount - FL535
Model # : FL535
The Protech FL -535 is a solid, large and full motion mount is constructed with high gauge steel that designed for most 37″-82″ flat panel TVs up to 65kg/143lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension) and angled towards a separate viewing area. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look.
Includes wall mounting hardware and assembly instructions.
| Specifications | |
|---|---|
| Weight | 16 lbs |
| Dimensions | 22 × 13 × 4 in |
| Colour | Black |
| Materials | Steel |
| Surface Finish | Powder Coating |

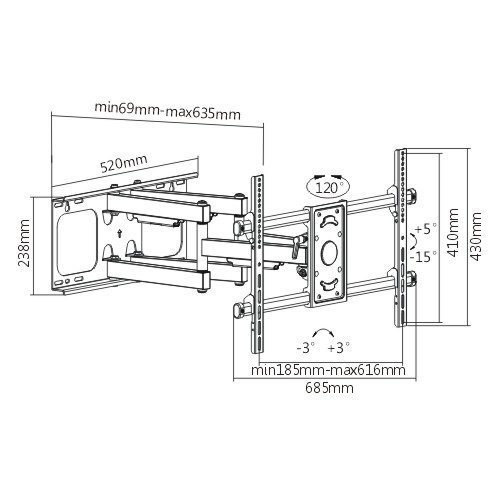

| Product Size | 615 x 685 x 430mm (24.2″ x 27″ x 16.9″) in open position |
| TV/Monitor Sizes | 37 – 82" |
| Weight Capacity | 65 KG / 143Lbs |
| VESA Standards | 200 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 400mm, 600 x 400mm |
| Installation | Double Stud, Solid Wall |
| Profile | 69 – 635mm |
| Motion Type | Full Motion |
| Tilt Angle | ＋5° to -15°, Freely Tilting |
| Swivel Angle | 60° to -60° |
| Level Adjustment | 3° to -3° |
