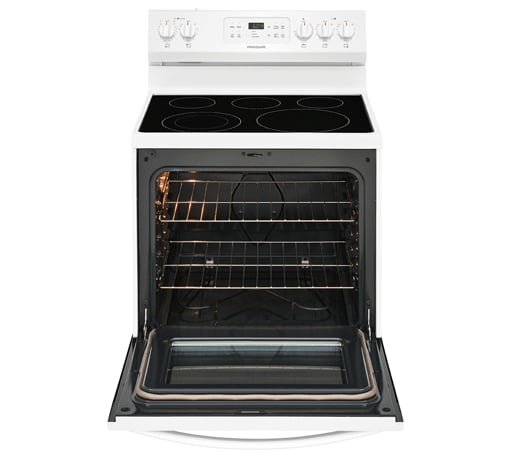

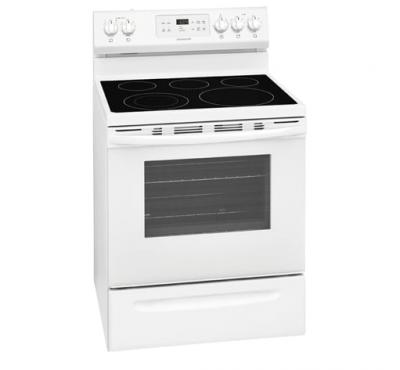

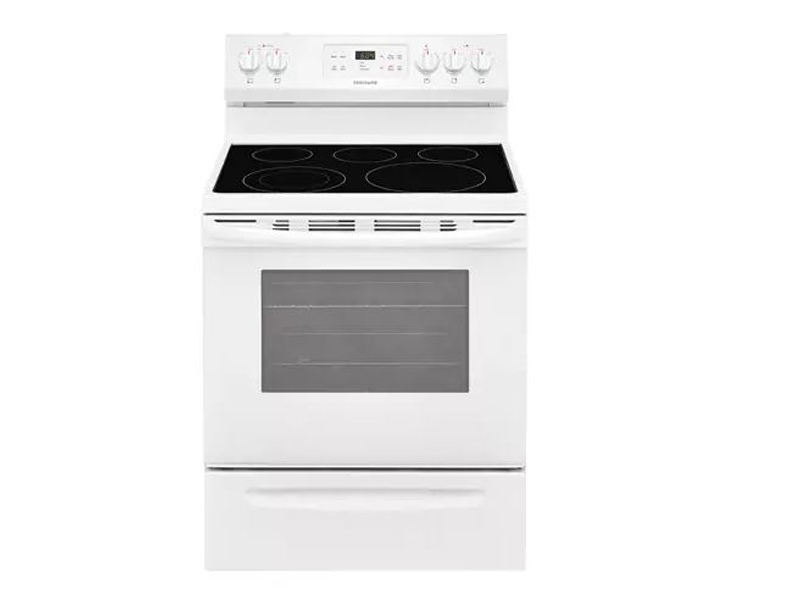

30" Frigidaire 5.3 Cu. Ft. Electric Range - CFEF3054UW
Features
![](/desc_images/505/CFEF3054UW_0.jpg)

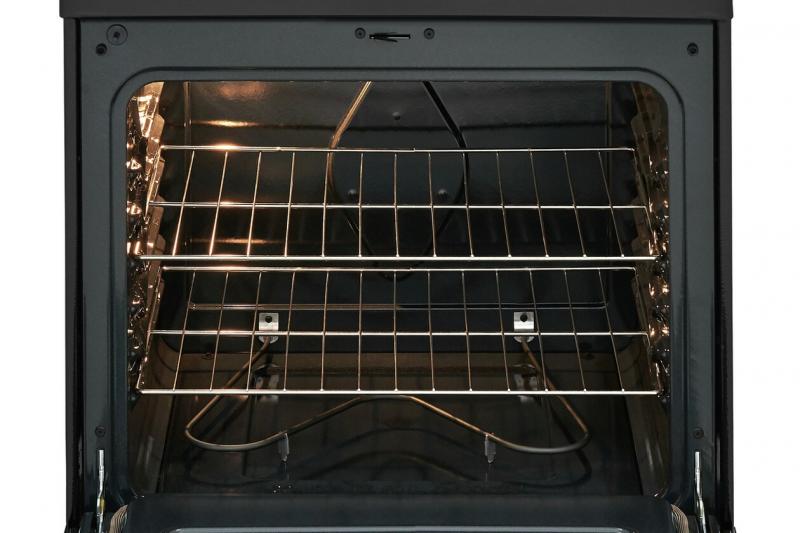

One-Touch Self Clean
Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.
![](/desc_images/505/CFEF3054UW_1.jpg)
Quick Boil
Get meals on the table faster with our 3,000W element - water boils faster than the traditional setting.
![](/desc_images/505/CFEF3054UW_2.jpg)

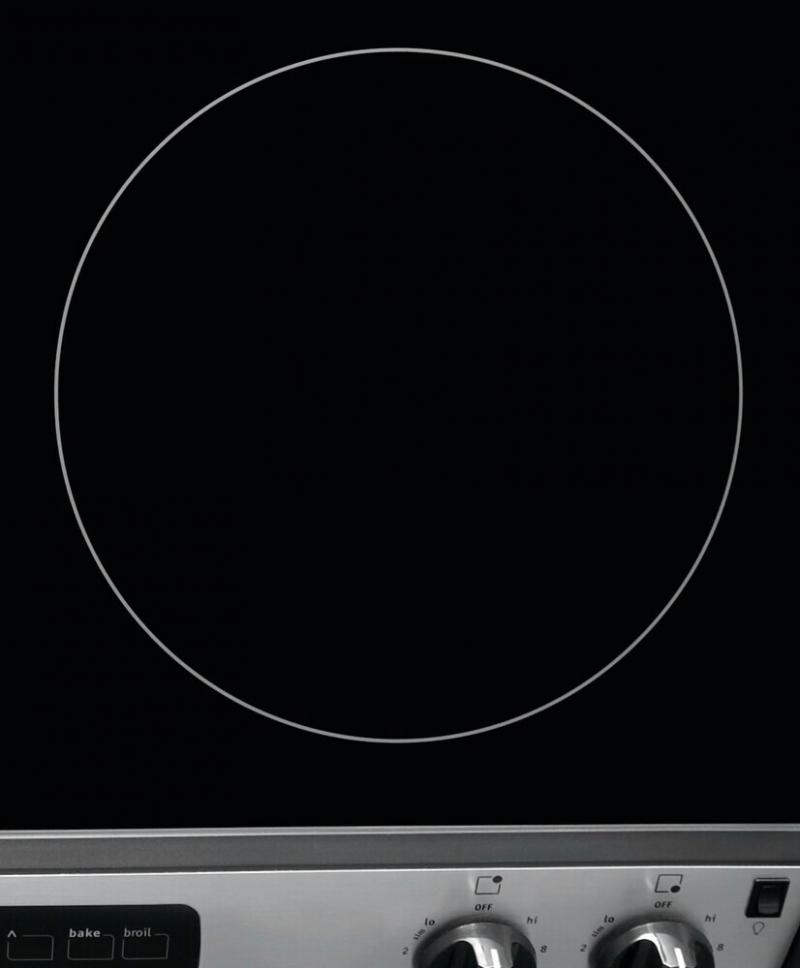

Extra-Large Element
With our extra-large 12" element, you have more flexibility to fit larger pots and pans.
![](/desc_images/505/CFEF3054UW_3.jpg)

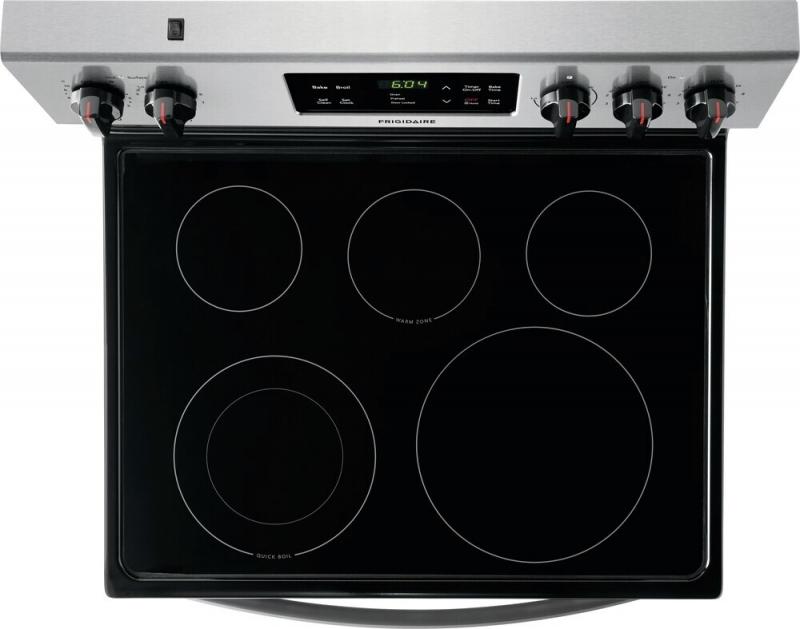

SpaceWise Expandable Elements
Flexible elements expand to meet your cooking needs - big or small.
![](/desc_images/505/CFEF3054UW_4.jpg)

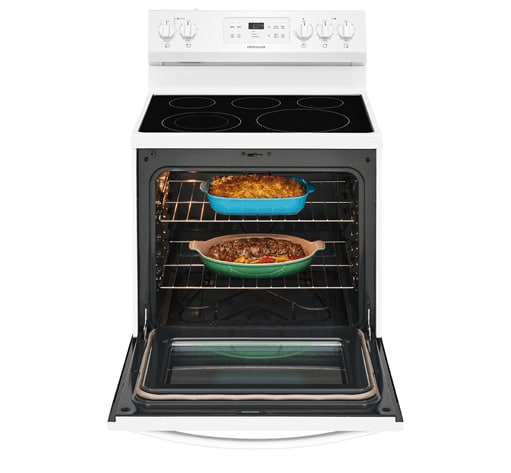

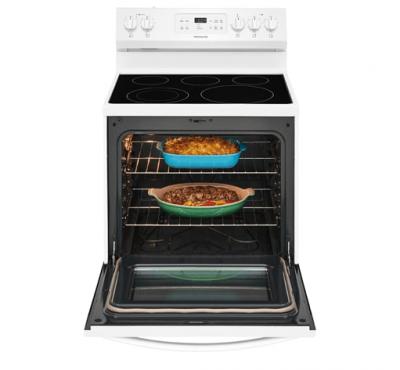

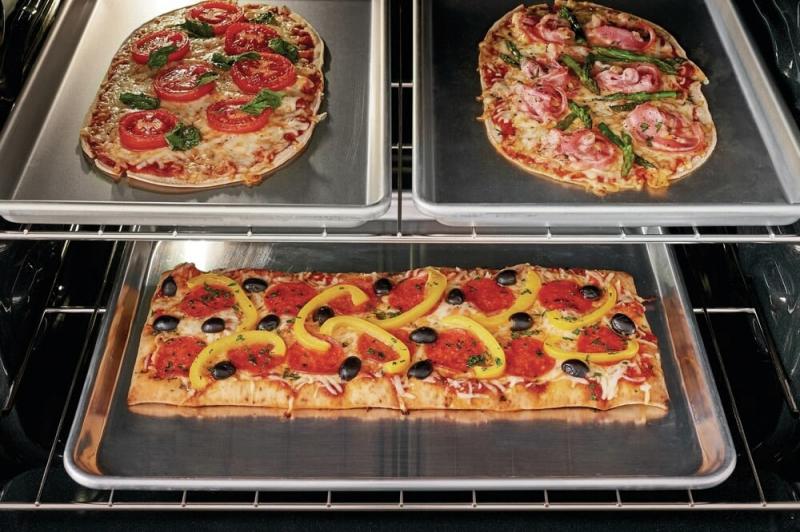

Large Capacity
Our large capacity oven gives you room to cook more dishes at once.
![](/desc_images/505/CFEF3054UW_5.jpg)

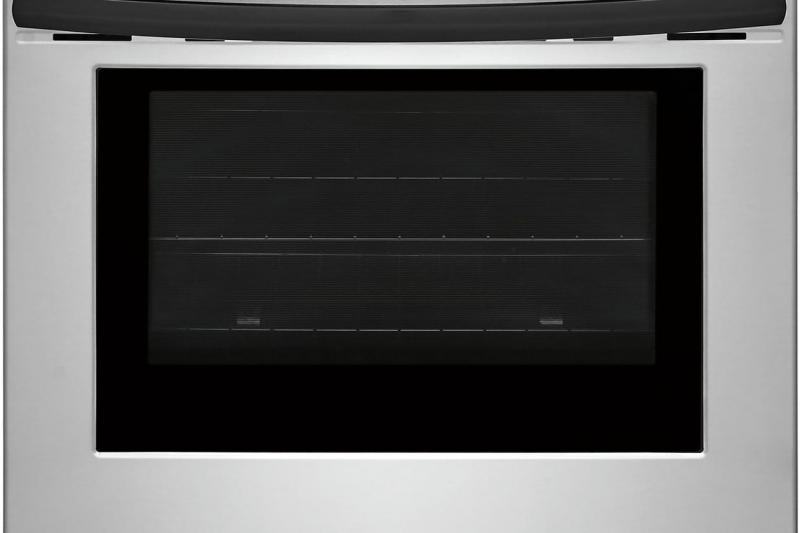

Color-Coordinated Oven Door with Large Window
Our large oven window makes it easier to check on the status of your dish without having to open the oven door.
![](/desc_images/505/CFEF3054UW_6.jpg)

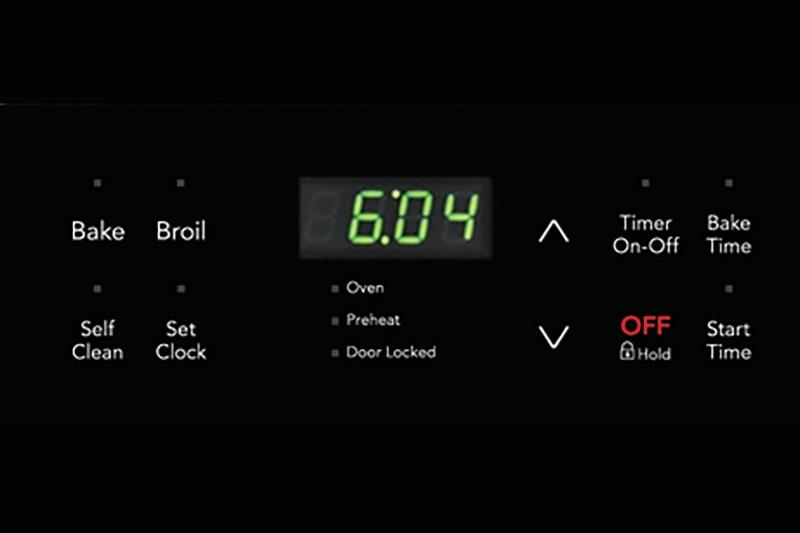

Electronic Kitchen Timer
Times up to 12 hours (control panel colors vary by model)
![](/desc_images/505/CFEF3054UW_7.jpg)

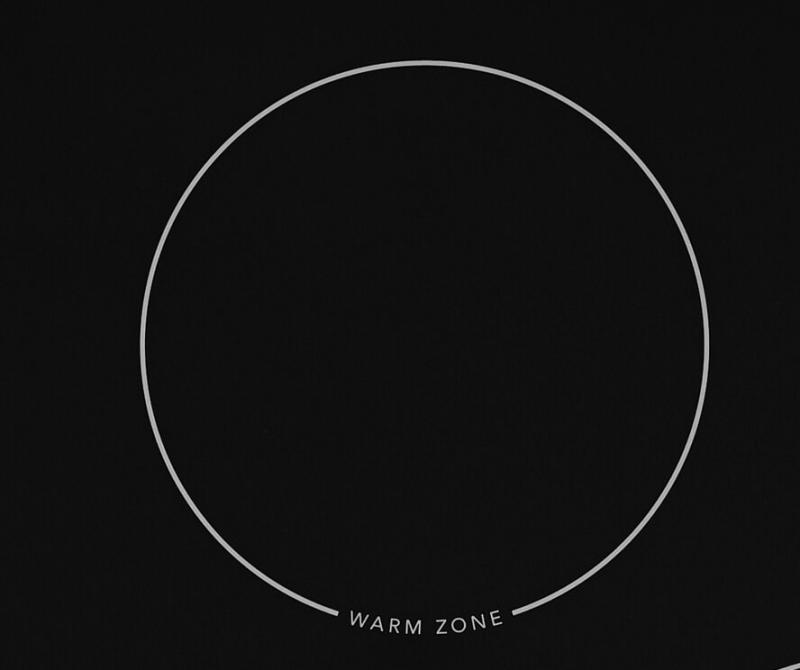

Keep Warm Zone
Keep food warm until everything – and everyone – is ready.
![](/desc_images/505/CFEF3054UW_8.jpg)

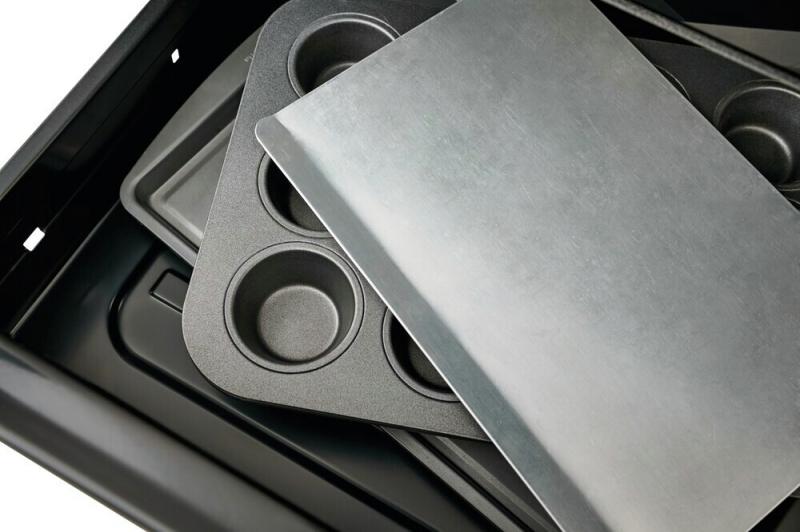

Store-More Storage Drawer
With the Store-More Storage Drawer, you will have extra space to store your cookware.
OVEN | |
---|---|
Window Type | Extra Large Visual |
Rack Type 1 Quantity | 2 |
Rack Type 1 | Flat |
Rack Position Type | Nickel Ladder |
Number of Rack Positions | 6 |
Broil System | Yes |
Broil Element | 3,000 Watts |
Bake System | Yes |
Bake Element | 2,600 Watts |
ELECTRICAL SPECIFICATIONS | |
Voltage Rating | 240 V |
Minimum Circuit Required | 40 Amps |
Cooking Controls | |
Timed Bake | Yes |
Temperature Display | Yes |
Self Clean | Yes |
Probe | No |
Preheat | Yes |
Oven Light | Yes |
Off | Yes |
Lockout | Yes |
Kitchen Timer | Yes |
Keep Warm | Yes |
Delay Clean | Yes |
Cancel | Yes |
Broil | Yes |
Bake | Yes |
CONTROLS | |
Sabbath Mode | No |
Control Lock | Yes |

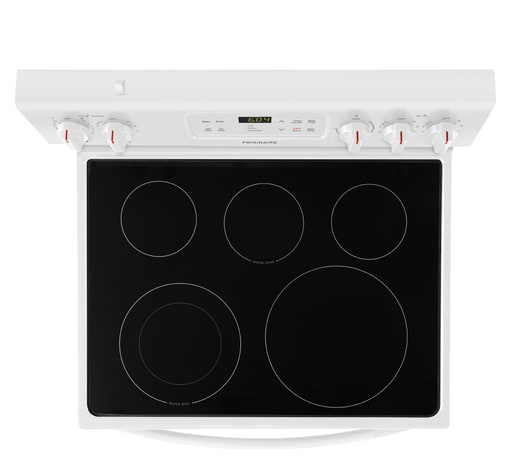

Cooktop Performance | |
Keep Warm Burner Location | Center Rear |
Left Rear Element Burner | 1,200 Watts |
Left Front Element Burner (Large) | 3,000 Watts |
Left Front Element Burner (Small) | 1,400 Watts |
Right Rear Element Burner | 1,200 Watts |
Right Front Element Burner | 2,700 Watts |
Left Rear Element Burner Size | 6 |
Left Front Element Burner Size (Large) | 9 |
Left Front Element Burner Size (Small) | 6 |
Right Rear Element Burner Size | 6 |
Right Front Element Burner Size | 12 |
General Specifications | |
Warranty - Parts | 1 Year |
Warranty - Labor | 1 Year |
Product Weight | 161.5 lbs |
Display | |
Display Type | Membrane |
Dimensions and Volume | |
Oven Interior Depth | 19 1/8 |
Oven Interior Width | 24 3/8 |
Oven Interior Height | 19 3/4 |
Depth With Handle | 29 1/4 |
Depth With Door 90° Open | 48 5/8 |
Depth | 28 13/32 |
Width | 29 7/8 |
Height | 47 3/4 |
Installation | |
Adjustable Leveling Legs | Yes |
Power Supply Connection Location | Bottom Center |
COOKTOP | |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Keep Warm Zone Light | Yes |
Exterior | |
Cooktop Finish | Color Coordinated |
Drawer Finish | Color Coordinated |
Handle Material | Stainless Steel |
Knob Color | Color Coordinated |
Knob Material | Plastic |
Certifications and Approvals | |
ADA Compliant | No |
UL Listed | Yes |
ETL Listed | No |
DRAWER | |
Drawer Type | Storage |
